Ferrari 456 GT

1992-2003 Ferrari 456 GT (later 456M GT) by Pietro Camardella and Lorenzo Ramaciotti at Pininfarina.
Chassis tipo F116CL and F116CLA; engine tipo F116B and F116C.
GT: 1,548 (141 RHD)
GTA: 403 (61 RHD; from 1996)
M GT: 688 (31 RHD to 2002)
M GTA: 650 (136 RHD to 2002)
Total 3,289 built
Chassis sequence: 96157 to 111376.
109589-

Engines Drawings Prototypes
456 GT/A 456M GT/A Bicolore Scaglietti Venice Convertible Straman
Brochures Colour Codes Interiors
Chassis/body Luggage set Tool kit Wheels

456-production



Timeline:

Design by Pietro Camardella and Lorenzo Ramaciotti at Pininfarina.

1992
Body production starts at Pininfarina.
Launch 24/Sep/1992 at Brussels.
Engine type F116B (Motronic M2.7).

1995
Airbags are introduced as an option and for some markets (US). Driver’s airbagged steering wheel is 4-spoke.

1996
GTA is introduced (chassis F116CLA) Mar/1996 at Geneva.
Engine type F116C (Motronic M5.2).
Drawings of Modificata from Ken Okuyama dated ’96.
Body production transferred from Pininfarina to Ferrari (Scaglietti).
Venice cars are made for Sultan of Brunei. 7 sedans, 4 spiders and 6 estates.
Various body types remade by Straman.

1998
Modificata is introduced 3/Mar/1998 at Geneva.
Externally the front and rear bumpers are changed along with fixed rear lower spoiler and new bonnet without air scoops. Pininfarina badges are now script ‘disegno Pininfarina’ only. Probably exterior redesigned by Ken Okuyama.
Interior is changed with round vents instead of rectangle ones and fewer dashboard dials. Redesigned center console. Different door inserts and seats.
Engine type F116C with changed firing order. ASR is introduced. Airbags are standard along with 3-spoke steering wheel.

2002
Bicolore Scaglietti introduced Paris 2002. In total less then 20 will be made.

2003
Production ends. Successor (612) presented next year.



Engines:

V12 65° – 5473,91cm3
Bore: 88mm, stroke: 75mm
Power: 325kW, 442CV at 6,200rpm
Torque: 540Nm at 4,500rpm
Dry sump, 4 ohc, 4-valves per cylinder

1992-1996: F116B (Motronic M2.7)
Firing order: 1-12-5-8-3-10-6-7-2-11-4-9

1996-1998: F116C (Motronic M5.2)
Firing order: 1-12-5-8-3-10-6-7-2-11-4-9

1998-2003: F116C (Motronic M5.2)
Firing order: 1-7-5-11-3-9-6-12-2-8-4-10

Gearbox:

6-speed manual or 4-speed automatic, transaxle. Single plate clutch (or torque converter).

2002-2003 Scaglietti Program; Bicolore Scaglietti; ‘Schumacher Edition’:

#128776 http://www.ferraridatabase.com/The_Cars/2002/456M%20GT/2/456M%20GT%202%202002.htm
Paris 2002 Black/dark grey, red interior

#129892 http://www.classicdriver.com/en/uk/find/4100_results.asp?dealerid=115&lCarID=1772577

ZFFWL44A730132383
Grigio Nuvolari (body) & Canna di Fucile (roof color)

#132385 http://sanfranciscosportscars.com/2003-ferrari-456m-gt-schumacher/
Grigio Nuvolari (body) & Canna di Fucile (roof color)



1996Venice: 7 Sedans, 4 Convertibles and 6 Estates; for Sultan of Brunei.

ZFFSP44C000103190 456 GT Green Venice Estate



456 GT Convertible conversion by Straman. 3 made + 1 targa.

100281 convertible blue

100890 convertible blue

ZFFSP44A7S0101250 convertible monza red http://ferraris-online.com/pages/carintro.php?reqcardir=FE-456CAB-101250

106021 targa grigio alloy, 2 seater, for Shaq O’Neal



List of Ferraris 456 GT owned by Sultan of Brunei, 73 in total! (inc. 11 GTA):

456 GT ZFFSD44C000098054
456 GT ZFFSD44C000098935
456 GT ZFFSD44C000098946
456 GT ZFFSP44C000098947
456 GT ZFFSD44C000098958
456 GT ZFFSD44C000098970
456 GT ZFFSD44C000099844
456 GT ZFFSD44C000099869
456 GT ZFFSD448000099918
456 GT ZFFSD44C000099970
456 GT ZFFSD44C000099972
456 GT ZFFSD44C000100012
456 GT ZFFSD44B000100034
456 GT ZFFSD44C000100213
456 GT ZFFSD44B000100685
456 GT ZFFSD44C000100878
456 GT ZFFSD44C000101074
456 GT ZFFSD44B000101316
456 GT ZFFSD44B000101381
456 GT                        101385
456 GT ZFFSO44C000101396
456 GT ZFFSD45C000101408
456 GT ZFFSD44C000101409
456 GT ZFFSD44C000101565
456 GT ZFFSD44C000101744
456 GT ZFFSD44C000101770
456 GT ZFFSD44C000101810
456 GT ZFFSD44C000101888
456 GT ZFFSD44C000101914
456 GT ZFFSD44C000102069
456 GT ZFFSD44C000102199
456 GT ZFFSD44C000102758
456 GT ZFFSD44C000102771
456 GT ZFFSP44C000102946
456 GT ZFFSP44C000103162
456 GT ZFFSP44C000103190 Green Venice Estate
456 GT ZFFSP44C000103219
456 GT ZFFSP44C000103261
456 GT ZFFSP44C000103292
456 GT ZFFSP44C000103368
456 GT ZFFSP44C000103380
456 GT ZFFSP44C000103662
456 GT ZFFSP44C000103996
456 GT ZFFSP44C000104023
456 GT ZFFSP44C000104368
456 GT                     104397
456 GT ZFFWP44C000104584
456 GT ZFFWP44C000104612
456 GT ZFFWP44C000104626
456 GT ZFFWP44C000104723
456 GT ZFFWP44C000104777
456 GT ZFFWP44C000104833
456 GT ZFFWP44C000105382
456 GT ZFFWP44C000105425
456 GT ZFFWP44C000105543
456 GT ZFFWP44C000105599
456 GT ZFFWP50C000105701
456 GTA ZFFWP50C000105838
456 GT ZFFWP50C000105867
456 GTA ZFFWP50C000105942
456 GTA ZFFWP50C000106001
456 GTA ZFFWP50C000106046
456 GT ZFFWP50C00010620X
456 GTA                       106332
456 GTA ZFFWP50A8V0106345
456 GTA ZFFWP50C000106714
456 GTA ZFFWP50C000106728
456 GTA ZFFWP50C000106742
456 GTA ZFFWP50C000107229
456 GT                      107489
456 GT ZFFWP44C000107636
456 GT ZFFWP44C000107639
456 GTA ZFFWP50C000109951



Colour codes

100 Bianco Avus.
0272094949001
101/C Argento Nurburgring Met.
0251199075001
P030Web
102 Giallo Modena.
image-spacer
1240 Nero Tropicale.
0253347367001
1250 Nero D.S.
0253480933001
P037Web

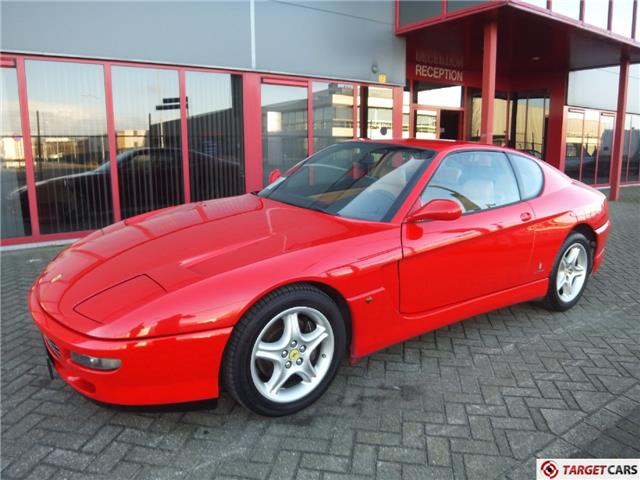

300/12 Rosso Corsa.
0283215993001 0283215993021
302/C Rosso Rubino.
image-spacer
311/C Rosso Monza Met.
0292101371001
312 Rosso Barchetta.
0283595762002 0283595762003
320 Rosso Barchetta.
321 Rosso Fiorano Mic.
image-spacer
3238 Grigio Titanio Met.
0142283057006 0142283057014
3673 Verde Silverstone Met.
image-spacer
503/C Blu Sebring Met.
0230073154004
0230073154014
513/C Blu Swaters Met.
0248783299003 0248783299025
514/C Blu Medio Met.
image-spacer
515/C Azzurro Monaco Met.
extremely-rare-six-speed-manual-gearbox-monaco-blue-hre-ferrari-456-gt-serviced-7

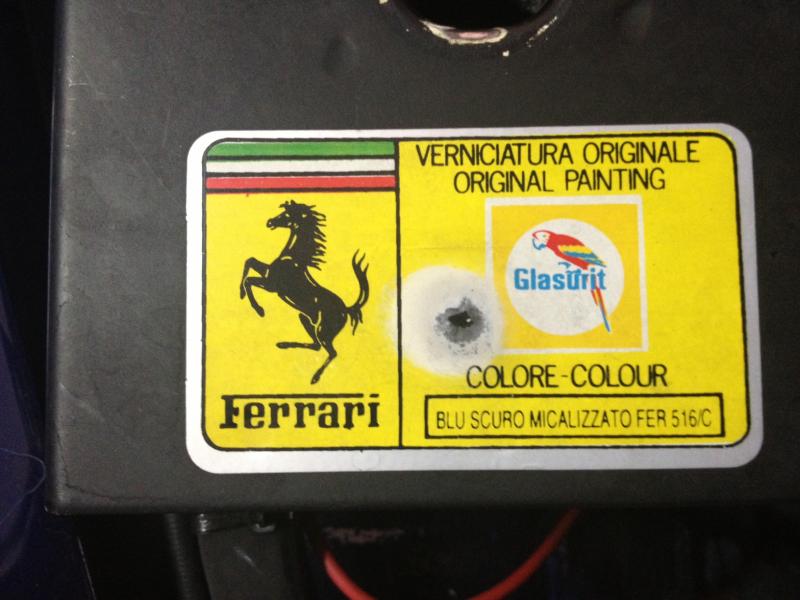

516/C Blu Scuro ‘Le Mans’ Mic.
0275426973011
fotografia
517/C Azzurro Hyperion Met.

521 Blu Pozzi.
0249631787001
522 Blu Tour de France Met.
0247975588001
IMG_6683_791509
523 Blu NART Met.
0270774004005 0270774004013
524 Azurro California Met.
image-spacer
606 Verde Inglese.
0279684209001
608 Verde Mugello Met.
610 Verde Zeltweg Met.
image-spacer
703/C Canna di Fucile Met.
456 GT 1994.
0253680718006
720 Grigio Ingrid Met.
456M GT 1998.
0251748755001
740 Grigio Silverstone.
image-spacer
750 Grigio Alloy Met.
2000-2002.
0253779807001
7
901/C Nero Carbonio.
image-spacer
905 Bianco Polo
image-spacer
906/C Nero Met.
image-spacer
910 Nero Daytona Met.
456M GT 2000, 456M GT 2001.
0261790588002
0261790588013



Interiors

Connolly leather.

White/Black

0239027463006 0239027463008

Light grey/Black

0209302445007 0209302445010

Light grey/Black

0253480933011 0253480933012

Light grey/Black

0205686716006 0205686716009

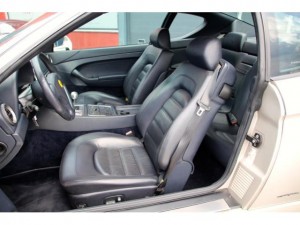

Dark grey

0251748755006 0251748755008

Dark grey/Black

0234549721009 0234549721007

Light beige/Black

0240826502010 0240826502004

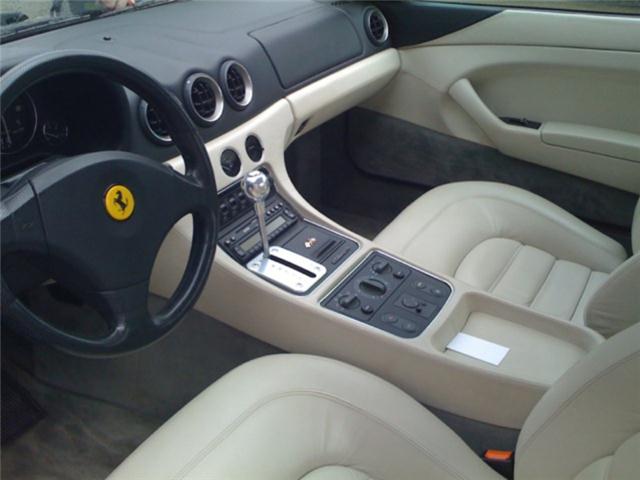

Light beige/Black

0248005080002 0248005080004

Beige/Black

0238051227006 0238051227007

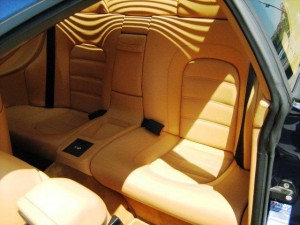

Tan

0221827017012 0221827017010

Tan/Black

0237690793010 0237690793011

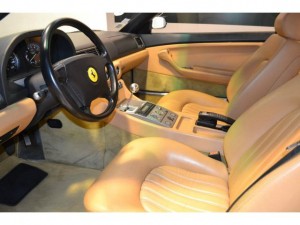

Tan/Black

0231901671006 0231901671007

Tan/Black

0227672705007 0227672705009

Dark tan

0251199075005 0251199075007

Dark tan/Black

0253778344003 0253778344005

Red

0195724889003 0195724889004

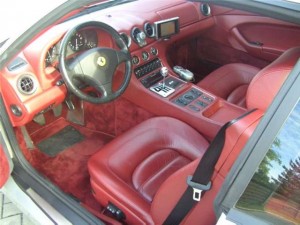

Red

0166651022009 0166651022011

Red/Black

0241228011006 0241228011015

Red/Black

0250661928004 0250661928009

Red/Black

0243053896007 0243053896005

Red/Tan

0262437206003

Green/Black



Dark green

0248193795006 0248193795004

Blue



Blue

0260995018008 0260995018003

Blue/Black



Blue/Black

0248468164003 0248468164004

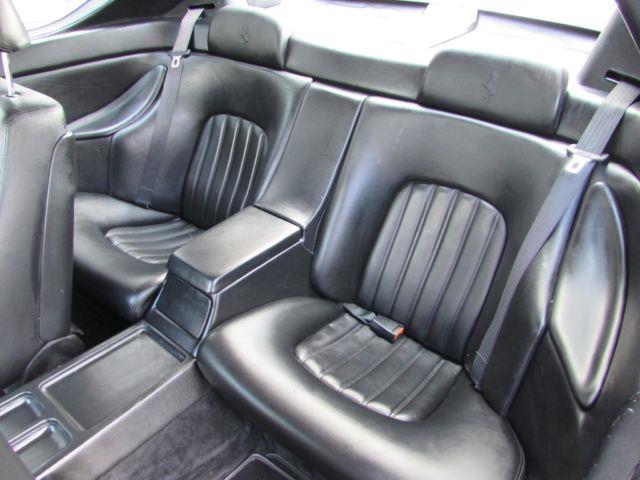

Black

0253914101007 0253914101006

Black

0142283057008 0142283057009

Black

0253843643011 0253843643003

Black

0240709013008 0240709013010



Chassis/body

Bonnet made in carbon fibre. Also font and rear gravel guards, front wheel outer panels and rear air inlets.

Doors made in steel as well as panels welded to tubular chassis. Steel panels include: flatbed, roof panel, rear plane, front flame protection and pillars.

Body panels made in aluminium. Also front and rear underbody as well as rear wing inner panels and other parts forming the engine bay and the luggage compartment.

Modificata: The underbody is plastic reinforced by fiberglass and polyurethane. The front wheelhousings are in glass-reinforced polyester, the rear wheelhousings and gravel guards are in aluminium, while the front gravel guards are in polyethylene and polypropylene.



Luggage set

On demand, by Schedoni:

GT: Medium suitcase, large suitcase, shoe-case, vanity-case, garment cover.

GTA: Medium suitcase, large suitcase, shoe-case, vanity-case.

0247975588008

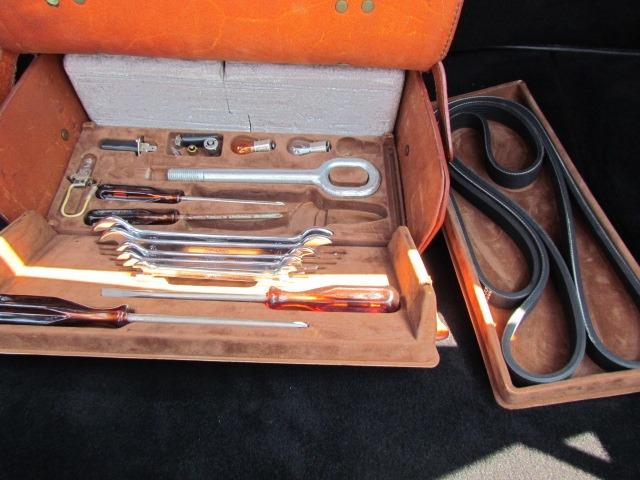

Tool kit

In Schedoni leather. 3 trays.

1992-1998
-puncture repair bottle
-water pump, alternator and steering control belt
-6-22mm flat spanners
-190mm universal pliers
-screwdriver for cheese-headed screws 4x100mm
-screwdriver for cheese-headed screws 7x120mm
-screwdriver for cross-pointed screws 4x100mm
-screwdriver for cross-pointed screws 6x120mm
-spark plug spanner, complete with ratchet wrench
-tow eyebolt
-spare bulbs and fuses

From 1998
-water pump and hydraulic power steering control belt
-alternator and compressor control belt
-set of flat spanners
-insulated universal pliers
-screwdriver for cheese-headed screws
-screwdriver for cross headed screws
-tow eye-bolt
-set of spare bulbs and fuses

0232237268012 0252133136007 0239590903012 0242887073022 0251662089008 0253680718014



Wheels and tyres

Front: 8,5″ J x 17″ 255/45 ZR 17
Rear: 10″ J x 17″ 285/40 ZR 17

Space saver spare wheel does not fit under the boot floor on GTA as there is a service panel for automatic transmission maintenance.



And now for something completely different:





Known chassis numbers:

ZFFSD44B000099227 http://www.bonhams.com/auctions/21901/lot/45/
ZFFSP44A2S0101592 http://www.rmauctions.com/lots/lot.cfm?lot_id=13155
ZFFSD44S000100543 http://www.rmauctions.com/lots/lot.cfm?lot_id=1068828

Modificata

ZFFWP44B000113244 http://www.rmauctions.com/lots/lot.cfm?lot_id=1060571
