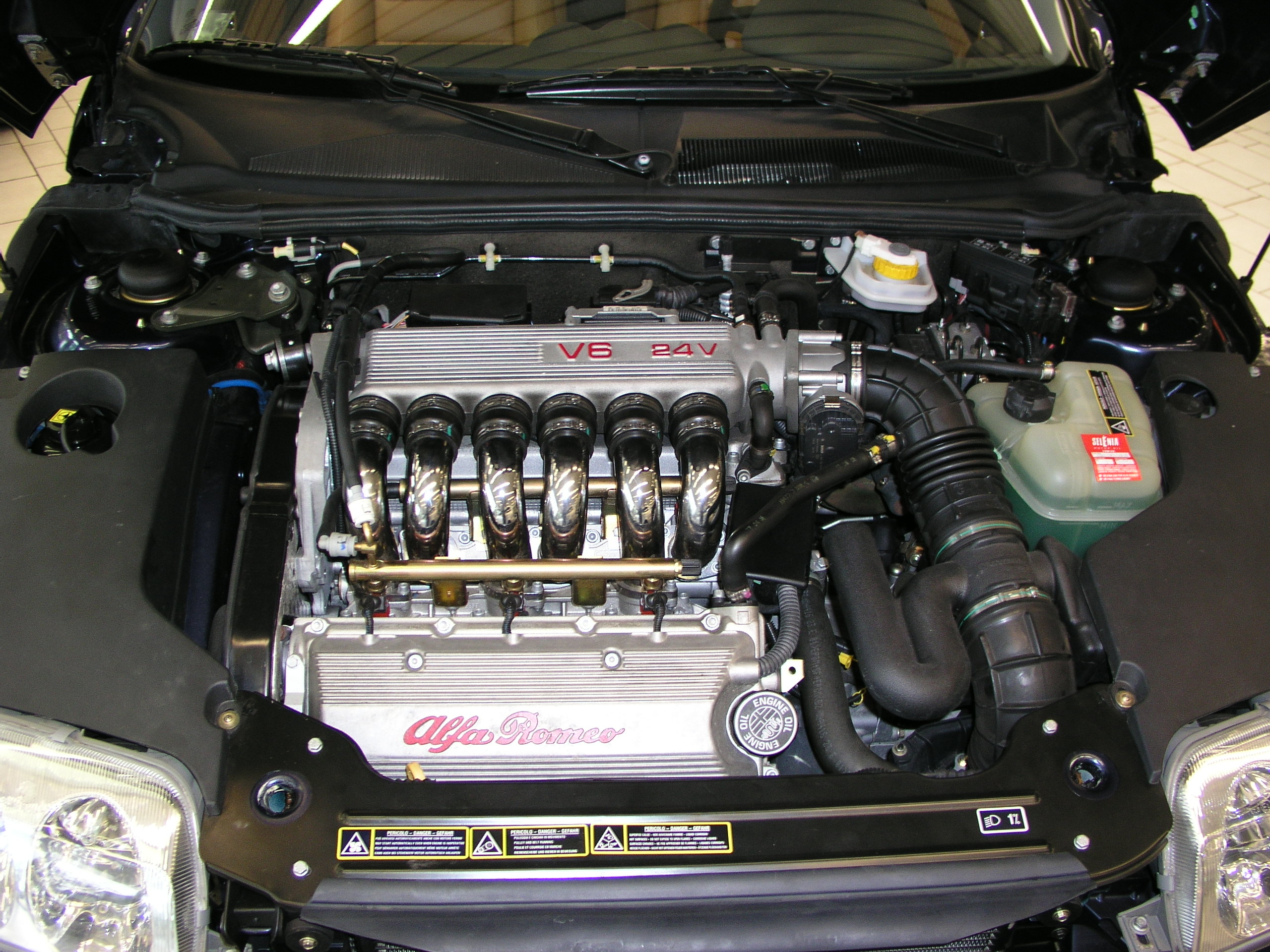

3.0 V6 24V – AR16105

0198697035014 motore30V624v

Engine: 3.0 V6 24V
Engine code: AR 16105
Stroke: Otto, four stroke
Injection/Ignition: Motronic ME3.1 EOBD
Firing order: 1-4-2-5-3-6
Capacity: 2959 cm³
Number of cylinders: 60° V6
Bore: 93mm
Stroke: 72,6mm
Maximum power: 218 CV / 160 kW @ 6300 rpm
Maximum torque: 265 Nm @ 5000 rpm
Compression ratio: 10:1
Engine oil pressure (oil at 100°C): Idling 0,8 bar / 4000 rpm 4,5 bar
Idling ratio: 700 ± 20
Euro emissions: Euro 3
Availability: GTV, Spider
Years produced: 8/2000–4/2003

Euro 3 compliant version of AR 16102 available to GTV and Spider. Discontinued in 2003, replaced by 3.2l unit.
